On request
RELAY
Реле
Код: RELAY

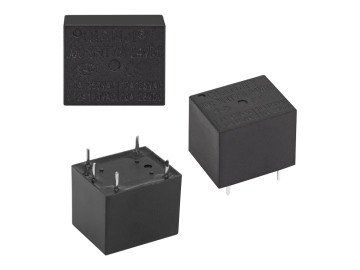

RELAY 12V 10A HK3FF-DC12V-SHG
Реле 12V 10A HK3FF-DC12V-SHG
Код: RELAY 12V 10A HK3FF-DC12V-SHG
РЕЛЕ RELAY 12V 10A HK3FF-DC12V-SHG-3F;Реле DC12V/415om,125VAC/10A,1-кг.(НО/НЗ),15x19x15мм,5-изв.за печ.монтаж,Asiaon-FRNGKE;
RELAY 12V 30/40A
РЕЛЕ 12V 30/40A 5 PIN
Код: RELAY 12V 30/40A
RELAY 12V 30/40A;PRE0004;LD-12P;12V DC; 80R; 28x28x25mm; 38g SPDT 1000000 цикъла;RSV-1C-M-12H Автомобилно електромагнитно реле LD-12P с бобина 80OM 12V и контакти 30A, max 40A. Размери 28x28x25mm. Подходящи цокли LRS20.;
RELAY 12V 50A FRC2U-DC12
РЕЛЕ 12V 50A 5 PIN
Код: RELAY 12V 50A FRC2U-DC12
Relay:electromagnetic;SPST x2;Ucoil:12VDC;50A;automotive;809;
RELAY 12V 70/80A 4pins
Реле 12V 70/80A 4pins
Код: RELAY 12V 70/80A 4pins
RELAY 12V 70/80A size: 28x28x25mm; 897-1AH-S1 70A 14VAC Relay: electromagnetic; Ucoil: 12VDC; 80A; automotive; 1.8W FRC3A-12F ;
On request
RELAY JQX-16FS/T92 220V 30A
РЕЛЕ 12V 70/80A 4pins
Код: RELAY JQX-16FS/T92 220V 30A
ниверсално реле JQX-16FS/T92 с напрежение на бобината 12 VDC и параметри на контакта 240 VAC / 30 A.размери - 32x27x28 mm;мощност на бобината - <0.9 W;;време за включване - <15 ms;работна температура - от -45°C до +70°C.;
On request
RELAY 12V 70/80A 5pins
РЕЛЕ 12V 70/80A 5pins
Код: RELAY 12V 70/80A 5pins
RELAY 12V 70/80A size: 28x28x25mm; JD1914;RAYEX ELEC AM3-12P 80A/60A 14VAC Relay: electromagnetic; SPDT; Ucoil: 12VDC; 80A; automotive; 1.8W ;
RELAY 12V 8ADG1U-12VDC
Реле 12V 8A DG1U-12VDC
Код: RELAY 12V 8ADG1U-12VDC
РЕЛЕ Relay Coil 12V_ 270 Ohm, 8A/250V;
On request
RELEY 12V BIG
Реле 12V BIG
Код: RELEY 12V BIG
257-00;
RELAY 220V SSR20B
РЕЛЕ 220V SSR20B
Код: RELAY 220V SSR20B
SSR20B Описание: input 220VAC load 20A 250VAC zero cross;
RELAY PT370730 230VAC 10A
РЕЛЕ 230VAC PT370730
Код: RELAY PT370730 230VAC 10A
Реле: електромагнитно; 3PDT; Uбобина: 230VAC; 10A/250VAC; 10A; 1VA;
RELAY HFD27 024-S
Реле 24V 2A HFD27/024-S
Код: RELAY HFD27 024-S
Реле TDS-2402L, 24VDC, 1.0A/120VAC, 2A/24VDC, DPDT Напрежение на намотката: 24 VDC Напрежение на контактите AC: 120 VAC Ток на контактите AC: 1 А Напрежение на контактите DC: 24 VDC Ток на контактите DC: 2 А Контакти: 2 превключващи контакта Монтаж: Платка Размери: /ДxШxВ/: 20.2х10х11.5 мм;
RELAY 24V 30A CM6331 5pins
РЕЛЕ 24V 30A
Код: RELAY 24V 30A CM6331 5pins
Реле CM6331 AS406 с бобина 24VDC ( 85-86 ) и контакти SPDT ( NC 30-87a, NO 30-87 ) 12VDC 30A.;contact form1Z, 1H; Contact resistanceu226450mu03a9(1A 6VDC); Operate / Release timeu226415ms/10ms;
RELAY 24V 6A 34.51.7.024.0010 5pins
РЕЛЕ 24V 6A 5pins
Код: RELAY 24V 6A 34.51.7.024.0010 5pins
Реле: електромагнитно; SPDT; Uбобина: 24VDC; 6A/250VAC; 6A/30VDC; 34.51.7.024.0010;Size: 28x5x15mm R-3.35kΩ;
On request
RELAY 41.52.9.024.001 24VDC 8A
Реле 41.52.9.024.001 24VDC 8A
Код: RELAY 41.52.9.024.001 24VDC 8A
Реле: електромагнитно; DPDT; Uбобина: 24VDC; 8A/250VAC; 8A/30VDC, 1.44kΩ; Размери 29x12.5x15.7mm, растер на контактите 5mm, тегло 13g. ;
On request
RELAY 507-2CC-F-C 12VDC
Реле 507-2CC-F-C 12VDC
Код: RELAY 507-2CC-F-C 12VDC
RELAY 507-2CC-F-C 12VDC 0.53W,Изолация бобина/контакт-5000VAC ;Брой контакти-2;Напрежение на комутация AC-277VAC;Ток на комутация AC-12A ,H15.7x29x12.5mm, ;DPDT;
On request
RELAY 507HT-1CH-F-C 24VDC
Реле 507HT-1CH-F-C
Код: RELAY 507HT-1CH-F-C 24VDC
Relay DC24V/1087om,0.53W,250VAC/28VDC/17A,H16x29x12.5mm,1-к.гр.(НО/НЗ),8-изв.растер-7.5ммм;RELAY 507HT-1CH-F-C 24VDC;
RELAY 56.32.9.012.0000
Реле 56.32.9.012.0000
Код: RELAY 56.32.9.012.0000
Eлектромагнитно реле Конф. на контактите DPDT Номинално напрежение на бобината 12V DC Ток през контактите макс. 20A Товароспособност на контактите АС @R (при активен товар) 12A / 250V AC Товароспособност на контактите DC @R (при активен товар) 12A / 30V DC Напрежение на комутация макс. 220V DC, макс. 400V AC Монтаж- цокъл Серия релета 56.32 Работна температура -40...70°C Външни размери 27.7x20.7x37.7mm Съпротивление на бобината 123Ω Ток на бобината 97mA Мат. на контакта AgNi Консум. мощност от бобината 1.1W Type of relay -electromagnetic Contacts configuration -DPDT Rated coil voltage - 12V DC Contact current max. - 20A AC contacts rating @R(at resistive load) 12A / 250V AC DC contacts rating @R (at resistive load) 12A / 30V DC Switched voltage max. 220V DC, max. 400V AC Mounting-socket Relay series - 56.32 Operating temperature -40...70°C Body dimensions-27.7x20.7x37.7mm Coil resistance- 123Ω Coil current - 97mA Contact material - AgNi Coil power consumption 1.1W Leads 4,8x0,5mm;
RELAY REED PRMA1A05  5V 1A
Реле 5V TEL.FAX
Код: RELAY REED PRMA1A05 5V 1A
Relay, Reed; 2 A; 200 V; 500 Hz; 1; 500 Ohms; Ru; -40 degC; 1 Form A; 5 V SEALED DIL PITCH RELAY DIP-1C05;D1A05;PRMA1A05;
On request
RELAY 6V S201S06V
РЕЛЕ 6V S201S06V
Код: RELAY 6V S201S06V
S201S06V SeriesSolid State Relays (SSR) are an integration of an infrared emitting diode (IRED), a Phototriac Detector and a main output Triac. ;
RELAY 821-W-1A-C 24VDC
Реле 821-W-1A-C 24VDC
Код: RELAY 821-W-1A-C 24VDC
Реле DC24V/795om,250VAC/30VDC/25A,18x31x30mm,1-К.Гр.(НО),6/4-Изв.,821-W-1A-C 24VDC;Реле 821-W-1A-C, 24VDC, 25A/250VAC, 20A/30VDC, SPNO;
RELAY WJ119-1A-24V
Реле 821-W-1A-C 24VDC
Код: RELAY WJ119-1A-24V
Реле WJ119-1A, 24VDC, 25A/250VAC, 8A/30VDC, SPNO Size(LxWxH)-26.5x16.5x30.5 mmCoil Voltage:24VDC Max.Contact current:20 amps Coil Power at nominal voltage DC:0.9W Contact Rating Resistive load:25A 250VAC, 23A 277VAC,8A 30VDC Dielectric Strength AC Voltage-Open contact:1000V Between contact and coil:3000V ;
On request
RELAY 833H-1C-C 24VDC
Реле 833H-1C-C 24VDC
Код: RELAY 833H-1C-C 24VDC
Relay DC24V/1.55кom,250VAC/30VDC/7A/10A,19x15x15mm,1-К.Гр.(НО/НЗ),5-Из;
On request
RELAY 842-1C-C  5VDC
Реле 842-1C-C 5V
Код: RELAY 842-1C-C 5VDC
Реле електромагнитно DC5V/120om,125VAC/30VDC/3A,15x10x11mm,1-КГ(НО/НЗ)/SPDT,6-изв.растер-2.5мм,842-1C-C 5VDC Song Chuan Relay Song Chuan 842-1C-C 5VDC,DC5V/120om,125VAC/30VDC/3A,15x10x11mm ,SPDT Relay Song Chuan 842-1C-C 5VDC Manufacturer: Song Chuan Product Category: General Purpose Relays RoHS: Details Coil Voltage: 5 VDC Relay Contact Form:1 Form C (SPDT-NO, NC) Contact Current Rating: 3 A Mounting Style: Through Hole Coil Resistance: 120 Ohms Coil Current: 44.7 mA Series: 842 Contact Form:SPDT (1 Form C) Brand:Song Chuan Product Type:General Purpose Relays Subcategory:Relays ;
