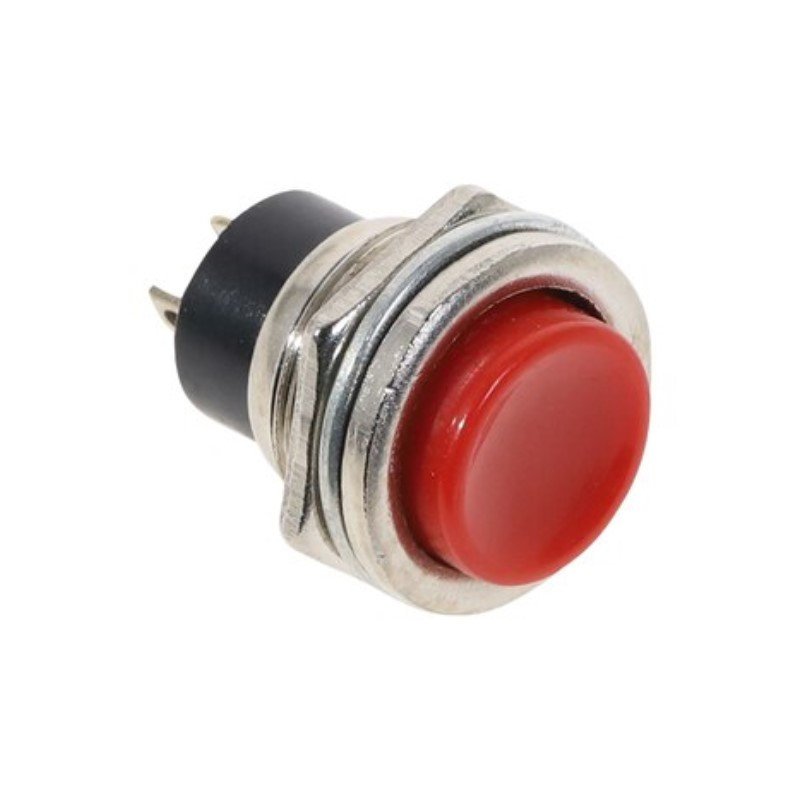

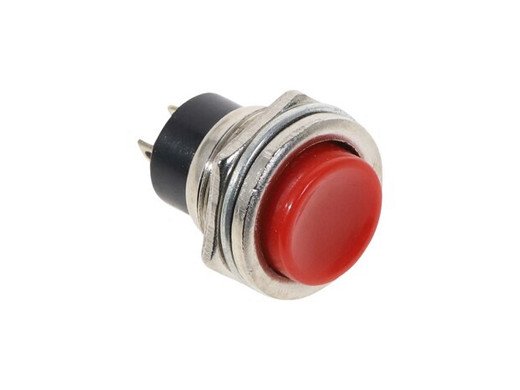

БУТОН кръгъл бутон, без заключване, нулиране, 3A 125V

Starter - Horn - Button Switch Contact Structure: 2 Pin (2P) connector Type: Push-release (momentary contact) Contact Resistance: 50 mΩ maximum Dielectric Strength: 1500Vac, 50Hz for 1 minute. Insulation Resistance: 100MΩ min. Applications: Vehicle starter and horn systems, control panels, industrial applications. Connection Type: Pin structure suitable for solder or cable connection. Conductivity: Stable current transmission with low contact resistance. Insulation Resistance: High insulation values ​​(long service life) Durability: Mechanical structure with a lifespan of thousands of cycles. Operating Temperature: Stable operation over a wide temperature range. Operating Temperature: -25°C ~ 55°C Service Life: ~10,000 Cycles Material: Metal body (durable construction) Advantage of use: Fast-responding spring mechanism. Product Dimensions: 39*27 mm Mounting Diameter: Compatible with 22 mm panels. Weight: 26.40 g. Color: Red - Black - Silver Model : IC-180-1 / PM-23190 ;

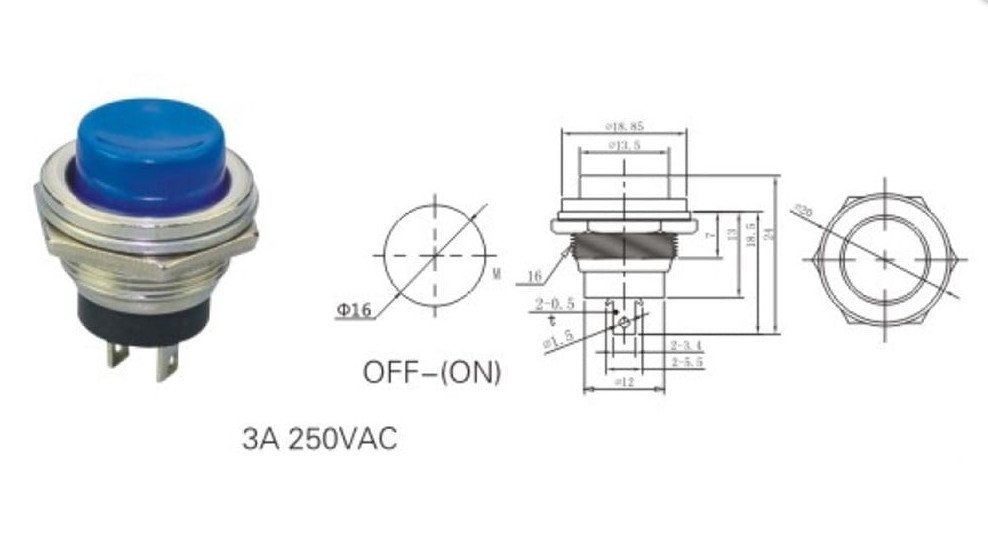

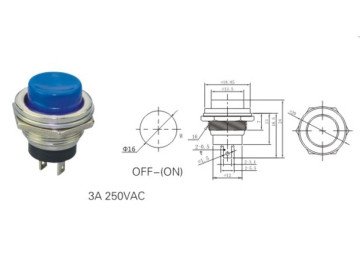

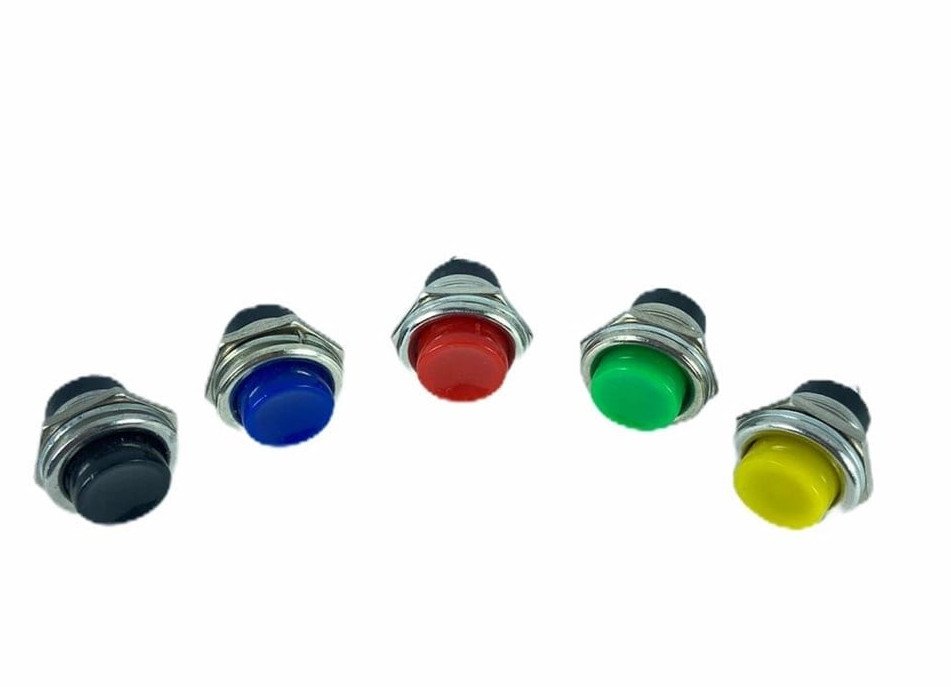

DS-212 16mm 3A 125V Switch Push Round Button No Lock Reset Green/RED DS-212 16mm 3A 125V превключвател, кръгъл бутон, без заключване, нулиране, ;NON-HOLD*;
